Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester

Name: Easy Installation Furniture Testing Equipment Caster Chair Base Durability Tester
Brand: SKYLINE
Price: 1 USD

Buy cheap Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester product

Brand Name : SKYLINE

Model Number : SL-T27

Certification : Calibration certificate

Place of Origin : CHINA

MOQ : 1 unit

Price : negoitable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1 unit

Delivery Time : 35 work days

Packaging Details : Plywood case

SKYLINE : Caster & Chair Base Durability Tester

Stest speed : 10±2 times /min

Standard : ANSI/BIFMA X5.1-17

Brand : SKYLINE

load weight : 102kg,plus

Warranty : 18 months

Contact Now

BIFMA 5.1 Furniture Testing Equipment Caster and Chair Base Durability Tester

Applicability
This test applies to pedestal base chairs with casters.
The purpose of this test is to evaluate the ability of the chair base and casters to withstand
fatigue stresses and wear caused by moving the chair back and forth
standard: ANSI/BIFMA X5.1-17

Specification

Load weight	102kg,plus
Move stoke	800mm
Block	width 51mm,thickness 3.2mm,three pieces ,detachable
Drive mode	drive by cylinder
Test speed	10±2 times /min
Test times	with block 2000 times ,98000 times without block
Counter	0~999999 times ,can be set
Air source	6kgf/cm^2

Features

12mm steel plate welded below the 100 GB channel, laying stainless steel top. Installation activities corners and locking casters.

Jumbo aluminum. Overall vertical solid and beautiful.

Touch screen + PLC + power sensor + specimen position sensor, the whole forming a closed-loop control. Loading speed can be adjusted. Easy installation

Test Standard
BIFMA X5.1 17 Clause

Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester

Product Tags:

stability testing equipment

chair testing machine

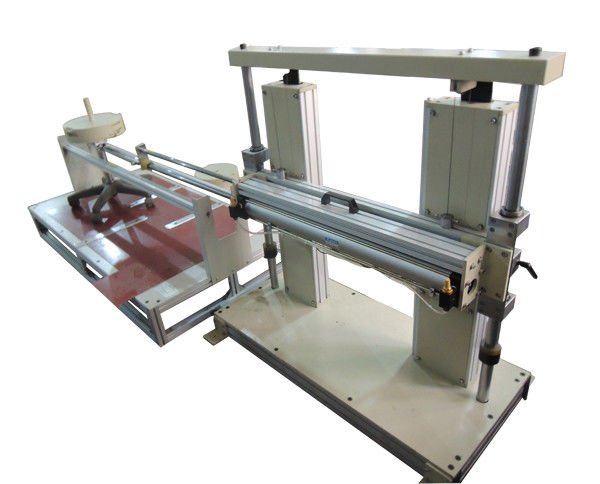

Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester Images
